Landforms by Running Water

Denudation is general lowering of earth’s surface by agents of erosion such as Wind, Water, Ice, Waves etc. Unlike glaciers & snow, which are confined to cold & temperate latitudes;  waves, which acts only on coastlines;  winds are only efficient in deserts; the effect of running water is felt all over the world, thus, making it the most important agent of denudation.

Landforms by Running Water

  • The source of river is generally found in an upland region with a slope down for the run offs
  • Hence, the uplands form the catchment areas of the rivers & the crest of mountains become the divide or watershed from which the streams flows down the slope
  • The initial stream that exists as a consequence of the slope is called the consequent stream
  • As the consequent stream wears down the surface, it is joined by several tributaries from either side

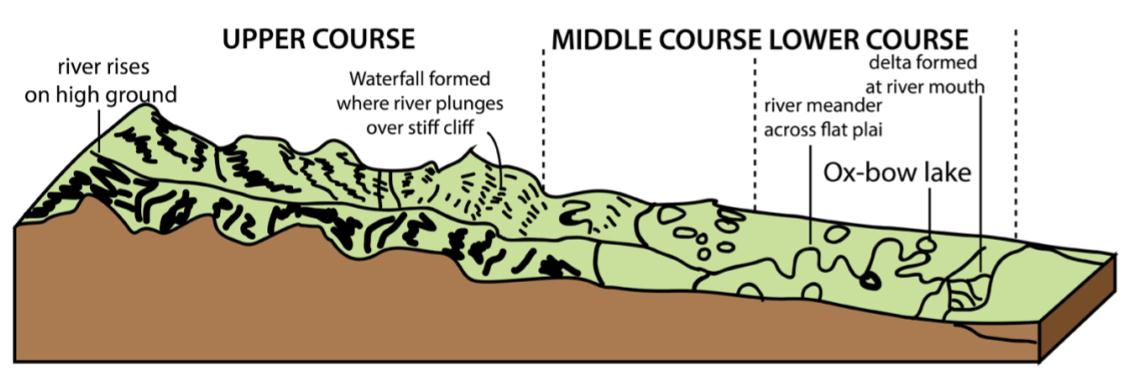

Course of a River

Upper Course

  • Gorge
  • Rapids
  • Waterfall
  • River Capture
Middle Course

  • Interlocking spurs
  • River Cliffs
  • Meanders
Lower Course

  • Flood Plains
  • Ox Bowl Lakes
  • Deltas

River Course


Upper or Mountain Course (Youth stage)

  • Begins at the source of the river near the watershed, generally at the crest of mountain range
  • Flow is very swift as it descends the steep slopes & predominant action of the river is vertical erosion
  • Valley developed is thus deep, narrow & distinctively V shaped which sometimes results in formation of gorges & canyons



Some of the features associated with the upper course of the river –

River Capture
  • Also known as river piracy or river beheading
  • Its development depends upon different rate of back cutting (headward erosion) into a divide mainly due to difference in precipitation received by streams.

River Capture

  • If one side of the divide cut more rapidly than the other then its greater erosive power will succeed in enlarging its basin at the expense of weaker stream.
  • For example in given figure, Stream A may eventually break through the divide & capture & pirate stream B.
  • The bend at which the piracy occurs is termed as Elbow of the capture & the beheaded stream is called as misfit.
  • The valley below the elbow is wind gap which may be useful for road & rail route.



Rapids, Cataracts & Waterfalls
  • Liable to occur in any part of river course but most numerous in mountains course where changes in gradient are more abrupt & frequent.
  • Due to unequal resistance of hard & soft rocks transverse by a river, the outcrop of hard rock may cause a river to jump & fall, known as
  • Similar falls of greater dimensions are referred as
  • When river plunges down in a sudden fall via. some height, they are called
  • Their greater force usually wears out a plunge pool beneath.

Rapids, Cataracts & Waterfalls


Middle or Valley Course (Maturity stage)

  • In the middle course, lateral corrasion tends to replace vertical corrasion; active corrasion of the bank thus widens V shaped valleys.
  • Volume of water increases with the confluence of many tributaries which increases river’s load.
  • The work of the river is predominantly transportation with some deposition in clearer manner, although velocity does not decrease.



Some of the features associated with the Middle course of the river –

Interlocking spurs
  • Downstream, interlocking spurs that project from both side of the valley are cut back into a line of bluffs.
  • Rainwash, soil creeps, landslides & gullying gradually widens the valley, cutting back the sides
  • As the stream flows on, the meanders migrate progressively outward with the interlocking spurs alternating with the undercut slopes.
  • Meanders in the middle course are only the beginning of the downward swing as bends are restricted by the interlocking spurs.
  • In the lower course, the loops are enlarged across the level plain & meanders are fully developed.

Interlocking spurs

River cliffs & Slip off slopes
  • When the flow of water PQ enters the bend of the river, it dashes straight into Q, eroding the outer bank into a steep river cliff at Q.

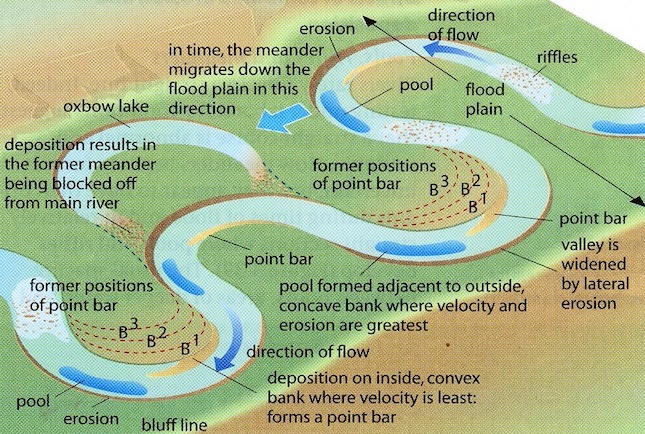

Formation of Meanders

  • The water piles up on the outside of the bend due to centrifugal force.
  • A bottom current RS is setup in a cork screw motion & is hurled back into midstream & inner bank. Shingle is thus deposited here at S, where the slip off is gentle.
  • The outer bank is therefore the bank of continuous erosion & the inner bank is the bank of continuous deposition.

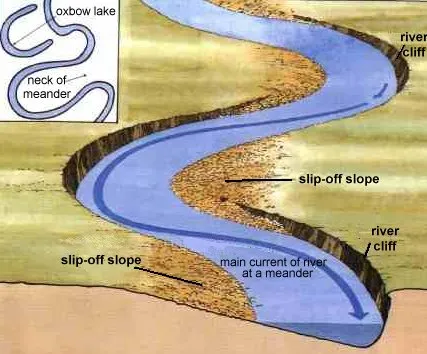

rive-cliff-and-slip-off-slope

Meanders
  • As water flowing under gravity seldom flows straight for long distance, a winding course soon develops
  • The irregularities of the ground forces the river to swing in loops forming Meanders

Formation of Meanders


Lower or Plain Course (Old Stage)

  • The river moving downstream across a broad, level plain is heavy with debris brought down from the upper course.
  • Vertical corrasion has almost ceased though lateral corrasion still goes on to erode its banks further.
  • Volume of water is greatly swelled with work of the river is mainly depositional, building up its bed & forming flood plains.



Some of the features associated with the plain course of the river –

Flood Plain
  • During sporadic floods, large quantity of sediments are spread over the low lying adjacent areas by the rivers, thus gradually building up a fertile flood plain.
  • When the river flows normally its bed is raised through accumulation of deposits.
  • Material is also deposited on the sides forming raised banks called Levees.

Floodplains

  • In an attempt to minimize the risk of the floods, artificial embankments are erected on the natural levees.
  • Nowadays, huge dredgers are also brought up in use to deepen the channels to avoid excessive sedimentation.



Ox-Bow Lakes (Dead Lake)
  • In the lower course of the river, a meander becomes very much pronounced.
  • The outside bank is so rapidly eroded that the river becomes almost a complete circle.
  • There comes a time, when the river cuts through the narrow neck of the loop, abandoning an Ox-bow lake & then flows straight.
  • The ox-bow lake will later degenerate into a swamp through subsequent floods that may silt up the lake, thus becoming marshy & eventually dries up.

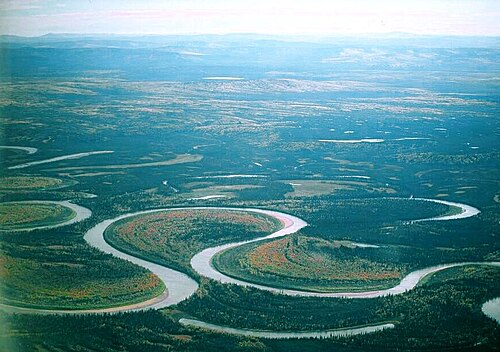

ox-bow_lake formation

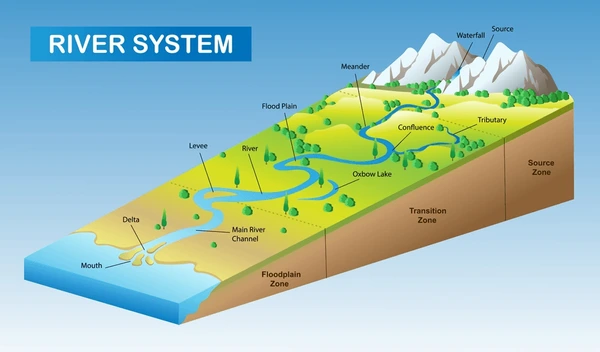

Delta
  • When the river reaches the sea, the fine materials it has not dropped yet are deposited at its mouth, forming a fan shaped alluvial area called a delta.
  • The alluvial tract is infact the seaward extension of the flood plains.
  • Due to obstruction caused by the deposited alluvium, the river may discharge its water through several channels called distributaries.

Formation of Delta

Favorable conditions for delta are –

  • Active vertical & lateral erosion in upper course of the river to provide extensive sediments
  • Coast should be sheltered preferably tideless & no strong current at right angle to the mouth of the river washing away the sediments
  • Sea adjoining the delta should be shallow or else the load will disappear in deep waters
  • No large lakes in the river course to filter off sediments




River Rejuvenation

  • When in the course, if the river parts are uplifted or depressed, they rejuvenate the river & make it young again
  • Rejuvenation mainly occurs when there is either a fall in sea level relative to the level of the land or a rise of the land relative to the sea known as negative movements leading to fall in river’s base level
  • This steepens the slope so that river’s eroding power or down cutting is renewed
  • River with its renewed vigour cuts into the former plain, leaving behind traces on both sides of the river
  • Point where the old & rejuvenated profile meet is called Knick point, which can be seen as waterfalls and rapids
  • If rejuvenation occurs in upper course, the river valleys are deepened & steep sided gorges are formed
  • In middle & lower course vertical corrasion replaces lateral corrasion & thus the existing meanders are vertically eroded by the rejuvenated stream

River Rejuvenation

A distinct new trench is cut in old valley & the river develops a deep valley with incised meanders; which are of 2 types’ entrenched meanders & ingrown meanders

Entrenched meanders
  • Are symmetrical & form when the river downcuts particularly quickly
  • Due to the speed which the river downcuts, there is little opportunity for lateral erosion to occur giving them symmetrical shape
Ingrown meanders
  • Are asymmetrical & form when river downcuts at a less rapid pace
  • Give river opportunity to erode laterally + vertically
  • A rejuvenating river can erode vertically into the former flood plain to produce features called river terraces.
  • If vertical erosion is rapid then pairedterraces are formed either side of the channel.
  • If vertical erosion is slower though, unpairedterraces form as the river is given opportunity to meander.
  • River terraces are particularly useful for settlements as they provide flat areas above the present floodplain.
  • Oxford, Cambridge and London all are developed on the river terraces of the Isis, Cam and Thames respectively.

Floodplains

  • A positive movement occurs when there is either a rise in sea level relative to the level of the land or a fall of the land relative to the sea level.
  • This will submerge the land along the coast, drown the valleys & weaken the erosive power of the river.
  • The lower course of the river may be partly in the sea & features of deposition are shifted in the middle course; with the upper course affected only a little.
  • Rise in the sea level mainly occurs due to release of the water locked up in the ice masses during the Quaternary ice ages.
